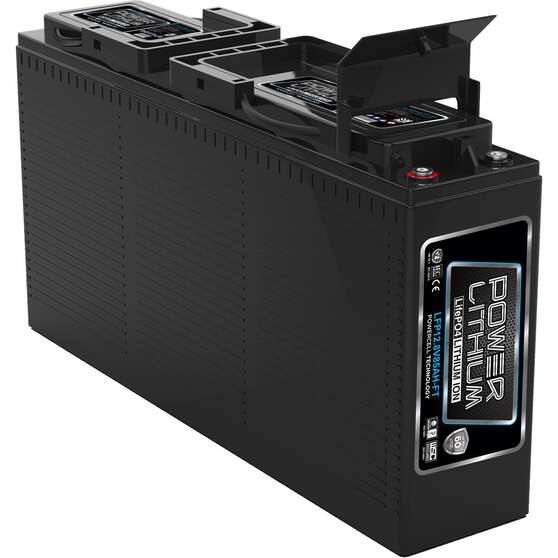

POWER LITHIUM 12.8V 85AH FRONT TERMINAL DEEP CYCLE BATTERY

The LFP12.8V85AHFT Power Lithium Deep Cycle Battery is a front terminal LiFePO₄ solution specifically engineered for compact, space-saving installations such as behind the rear seats in dual cab vehicles. Combining lightweight design, extended cycle life, and advanced BMS protection, this battery delivers exceptional lifetime value and performance.

Specifications:

• Voltage: 12.8V

• Capacity: 85Ah

• Design: Front Terminal (Slim)

• Terminal Type: M8

• Cell Layout: 4

• Hold Down: B0

• Weight: 9.30kg

• Dimensions (LxWxH): 395 x 110 x 290 mm

• Total Height (TH): 290 mm

Key Features:

• slim front terminal design – ideal for tight or concealed mounting spaces

• LiFePO₄ technology – stable chemistry with no risk of combustion

• longer cycle life – up to 20x the lifespan of lead acid batteries

• higher power output – consistent high discharge with full energy capacity

• lighter weight – ~40% the weight of comparable lead acid batteries

• intelligent BMS – internal system ensures safe and optimal operation

• modular scalability – connect up to 4 in series or 10 in parallel

• wide temperature range – performs from -20°C to 60°C

Applications:

• 4WDs and dual cab utes

• RV and caravan setups

• solar and off-grid systems

• backup power and UPS

• marine and outdoor recreational use

Certifications:

• UN 38.3

• IEC 62619

• ISO 9001

• ISO 14001

Warranty:

• Private Use: 60 Months

• Commercial Use: 36 Months
