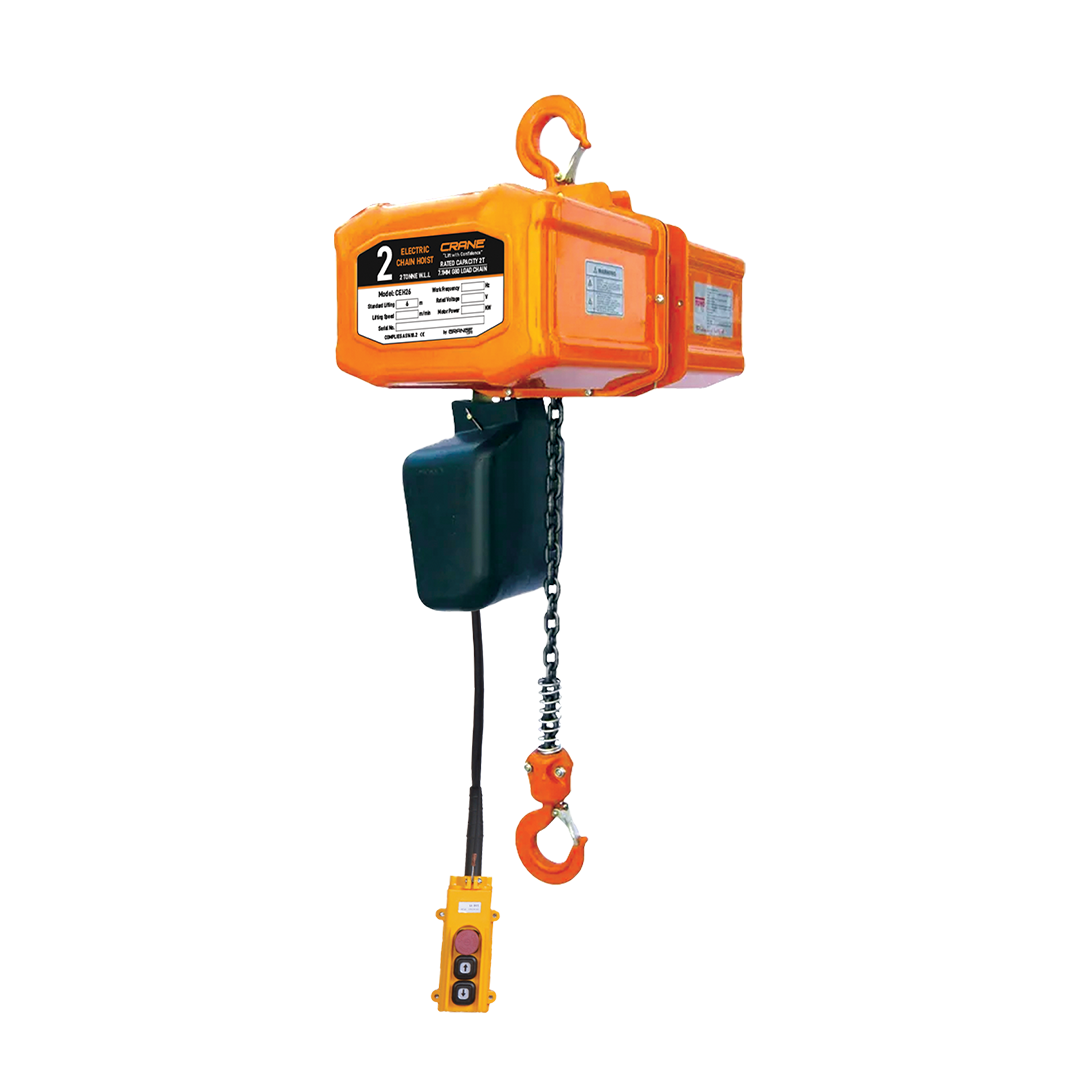

CRANE Electric Chain Hoist is built for industrial-grade lifting performance. With load capacities from 500kg to 2 tonnes, this hoist is perfect for warehouses, workshops, and construction environments. Featuring a high-efficiency motor, G80 alloy steel chain, and advanced safety mechanisms, it delivers safe and reliable operation every time.
Key Features
Emergency Stop Switch for operator safety
Thermal Overload Protection
Electromagnetic brake – holds load even during power loss
Upper and lower limit switches prevent over-travel
Compact & lightweight pressed steel body
High tensile alloy hooks with safety latches
Grade 80 – 7.1mm G80 alloy load chain
Chain protection box to prevent tangling
Meets Australian Standard AS1418.2
Single Phase 240V – plug & play setup
Specifications
Attribute
Details
Capacity Options
500kg, 1000kg, 2000kg
Lift Height
3m or 6m
Controller Cable Length
2.5m or 5.2m
Load Chain
Grade 80 Alloy Steel – 7.1mm
Net Weight
55kg – 69kg (depending on model)
Motor
High-efficiency, ventilated, low-maintenance
Power
Single Phase, 240V
Certification
AS1418.2 Compliant
Warranty
2-Year Back-to-Base
Safety & Control
Handheld remote control with emergency stop
Control cable up to 20m for flexibility
Integrated slip clutch prevents overload damage
Ventilated motor shuts down to prevent overheating
Heat-treated, drop-forged swivel hooks
Warranty & Support
This hoist includes a 2-Year Back-to-Base Warranty. Customers are responsible for sending the unit to our service base. Return shipping is available at an additional charge, or customers may collect in-store once the product is serviced.
Need More?
We also offer beam trolleys, rigging slings, lifting clamps, and more. Contact our team for bundle pricing and compatibility with your lifting setup.
